24" LED Undercabinet Dimmable Fixture ,120V,90CRI,4000K,White
HALO HU1024D940P 24" LED Undercabinet Dimmable Fixture ,120V,90CRI,4000K,White
DESCRIPTIONIdeal for task, accent, office, cove, and utility, under and above cabinet
lighting display, the Halo Undercabinet low-profile design delivers
maximum energy savings and life with easy installation. The integrated
driver design allows 120V direct to the fixture for easy installation.
Fixtures are available in 9", 18", 24", 36" and 48" lengths, the Halo
system can be configured to fit almost anywhere. Each unit has an
integrated on-off switch. Smooth dimming down to 5% using a standard
dimmer*. Combination of direct wire to the fixture and connector cables
provide for installation flexibility. Minimum Color Rendering Index (CRI)
of 90 in 2700K, 3000K and 4000K color temperatures.
SPECIFICATION FEATURESEven Light Distribution
Specialized optical system
consisting of tightly clustered
proximity phosphor LEDs,
advanced optical chamber
coatings and lens materials
resulting in soft illumination
with very high efficiency. These
fixtures are ideal for task lighting
over glossy surfaces with no
distracting shadow patterns.
Use any combination of three
different wiring methods: Bring
flexible conduit or Romex directly
to either end of any size fixture.
Conduit connector and romex
strain relief hardware is included
with each fixture. Utilize the
available plug in connectors (sold
separately) to link additional
fixtures to the circuit or continue
with flex conduit or romex (See
instructions sheets for more

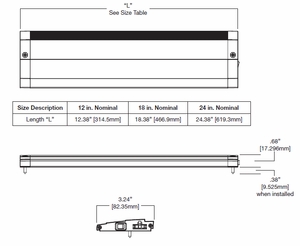

Durable Low Profile Housing
Heavy gauge aluminum housing
and color matched end caps with a
3/4” overall height.
Two Fastener Mounting
Each unit is secured directly to the
mounting surface with just two
fasteners keeping installation costs
low. Can be mounted in horizontal
and vertical orientations.
Link any combination of fixtures
up to 450 W total load using
Optional splice box has a
connection port on each side to
allow for runs in either or both
directions. Includes Romex/
˝” conduit connector. Various
connector cable options provide
flexibility of mounting location.
Fixtures and accessories are
available in both White (P) and
Matte Black (MB) finishes.
Electronic driver provides full light
output, flicker free and noise free
- cULus listed
- Can be used to meet IECC,
ASHRAE commercial and
- ENERGY STAR® qualified
